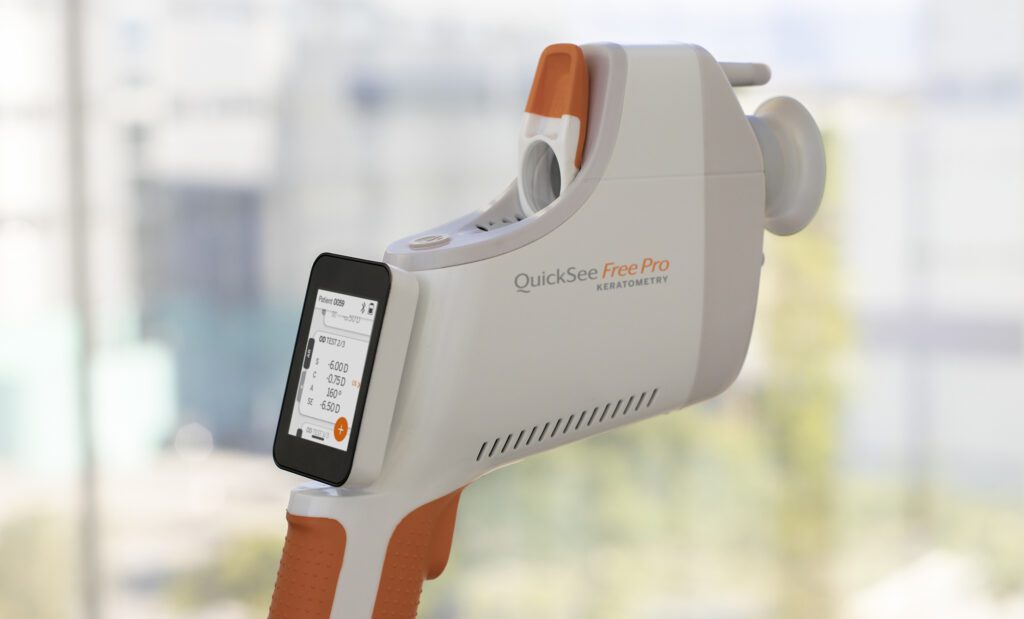

Multimodal handheld autorefractor + keratometer

Portable AR/K for the clinic and mobile screening: QuickSee Free Pro by PlenOptika

Deliver better vision care with the world’s most accurate handheld autorefractor.¹

By combining open-view design, wavefront aberrometry, and keratometry, QuickSee Free Pro delivers multimodal insight into low- and high-order aberrations—helping clinicians make more accurate and personalized refraction recommendations.

Get a fuller picture: autorefraction + keratometry in one handheld measurement

QuickSee Free Pro’s keratometry capability brings corneal-curvature measurement into a portable AR/K format—useful in clinic and mobile settings. It provides objective K readings to pair with autorefraction when you need a more complete view of the eye’s optical system.

Get a QuickSee Free Pro demo—or try it in your practice for 10 days.

See how fast, accurate handheld autorefraction can support your workflow and help you grow your practice.

Why QuickSee Free Pro

Wavefront aberrometry

Measures ocular aberrations and refractive errors—including low- and high-order aberrations—for a more complete optical picture.

Portable

Handheld AR/K for clinical workflow flexibility and mobile screening.

Dynamic measurements

Produces results with measurement-confidence indicators designed to support consistent readings.

Open view

Reduces patient accommodation for more reliable measurements.

Affordable autorefraction

Desktop-grade accuracy at a fraction of the price.

See the clinical performance and technical specifications

Patient-friendly flexibility (including children)

  • Suitable for measuring children, with fogging lenses that can support pediatric exams
  • Supports patients with mobility or positioning challenges
  • Works with bedbound patients

Easy to learn and use

  • Operators can be up and running in minutes

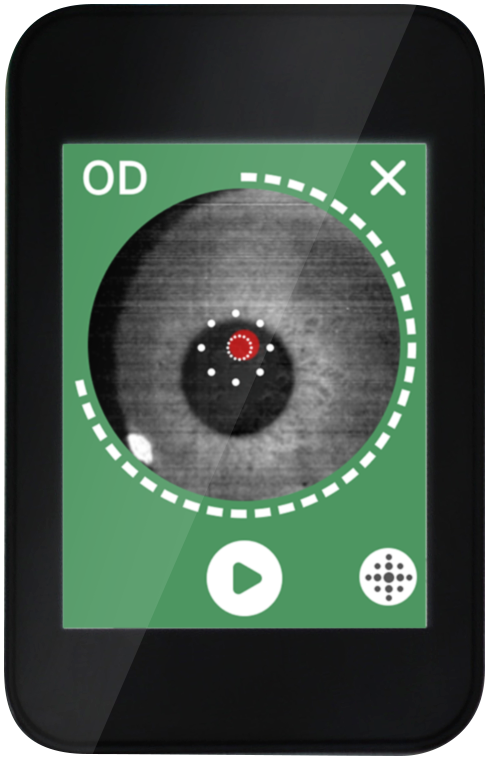

  • Pupil camera aids alignment
  • Accelerates subjective refraction with a more accurate starting point

Strong agreement with subjective refraction

QuickSee Free technology competes with the best desktop autorefractors for accuracy.

<= 0.25 D: 70-75% of patients

<= 0.5 D: 80-90% of patients (see publications)

Unmatched performance in the clinic and in the field

QuickSee Free Pro’s combination of open-view binocular design, wavefront aberrometry, and dynamic measurements produces clinically accurate autorefraction and keratometry in a durable handheld format—well-suited for the clinic, optical shop, and mobile care (e.g., senior living centers or school settings).

As a mission-driven technology innovator, we put a premium on data-backed findings in rigorous, peer-reviewed research.

Our original and independently-authored research findings indicate:

  • Portable autorefraction can extend refractive care in low-resource and remote settings;
  • Prescriptions derived from PlenOptika technology often align closely with subjective refraction with similar visual acuity for many patients, alongside generally positive acceptance/preference patterns in multiple studies;
  • The devices perform high pediatric testability and strong screening discrimination for significant refractive error and targeted pediatric vision conditions;
  • Advanced analytics (machine learning and dynamic wavefront methods) are repeatedly associated with improved agreement/precision, and wavefront/HOA measures show reliability comparable to desktop wavefront systems in the contexts described.

    See our publications page for more detail.

Get QuickSee Free Pro

We invite you to learn how QuickSee Free Pro can benefit your practice: Accelerating workflows and providing more accurate and personalized recommendations for your patients.

If you’re ready for a 10-day trial in your practice right now, click the button immediately below. Or if you’d like to learn more and get an online demo first, tell us more about yourself below. One of our associates will reach out to you by telephone or email shortly to answer your questions and arrange a next step.

Want a trial device right away?

If you would like to try QuickSee Free or QuickSee Free Pro in your practice, please visit our Trial Program page to act quickly.

Clinical performance specifications

AUTOREFRACTOR
Pupil size2 to 8 mm
Intended patient population>= 3 years
Accommodation control Open view, Fogging lens (optional)
Cycloplegia requirementNone
Dilation requirementNone
Illumination requirementNone
Acquisition time5, 10 seconds
Spherical range-13D to +10D, increments of 0.01D, 0.125D, 0.25D
Cylindrical range-8D to +8D, increments of 0.01D, 0.125D, 0.25D
Axial range0–180º, increments of 1º, 5º, 10º
Base technology Wavefront aberrometry
KERATOMETER
Radius of curvature5 to 12 mm in 0.01 mm increments
Corneal astigmatism0 D to +/- 8 D (R 5 to 12mm)
CenterDiameter 3.2 mm at Radius of curvature 8 mm
Pupil size measurementDisplayed in advanced refraction metrics, Companion App, and printed results

Technical specifications

Measurement modes (QuickSee Free Pro)Simultaneous AR and K, AR only, and K only
Display properties2.4-inch LCD, capacitive touch screen, readable outdoors, true color (65,536 colors)
Charger propertiesUSB-C medical grade wall adapter, AC 100 to 240V, 50/60 Hz
Battery 6 hours continuous use +/– 1 hour (10,000 mAh Li-ion);
3 hours charge time (5% - 75%);
5 hours charge time (0% - 100%);
IEC 62133-2:2017 certified
CalibrationFactory calibrated; no field calibration needed
Measurement capacityMeasurement storage capacity: > 10,000 measurements
Regulatory classification
(medical device)
Class I FDA (USA), Class IIa Product CE, MDR Compliant, Class IIa, UKCA, MDR 2002 Compliant
Laser safetyClass 1, IEC 60825-1:2014 certified
Weight< 750 grams / 1.65 lbs
Dimensions30 cm (H) x 5.5 cm (W), 18 cm (L)

Please note: Our Privacy policy and Terms of service were updated on September 30, 2025

Request a training session

Are you ready to learn how to use QuickSee Free / Free Pro effectively? Tell us about yourself and your circumstances and we will reach out to arrange a training session with you.
